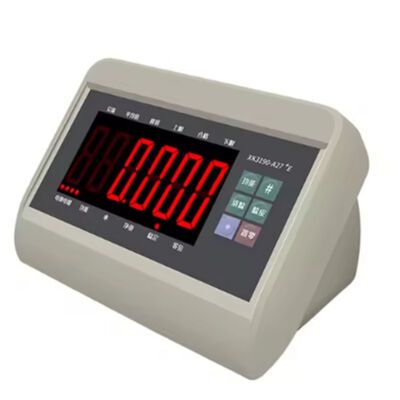

Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale

1
MOQ
قابل للتفاوض
السعر
Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
اسم المنتج: مؤشر الوزن
نوع العرض: قاد
مادة: علبة بلاستيكية
مزود الطاقة: 220 فولت 50 هرتز أو 110 فولت 60 هرتز
حساسية خلية الحمل: 1.5 ~ 3 ميجا فولت / فولت
لون: رمادي
إبراز:

XK3190-A27E digital weighing indicator,LED LCD display weight indicator,electronic platform scale indicator

,

LED LCD display weight indicator

,

electronic platform scale indicator

معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: YAOHUA
إصدار الشهادات: Non/OIML
رقم الموديل: XK3190-T7+E
شروط الدفع والشحن
تفاصيل التغليف: كرتون
وقت التسليم: 15-20days
شروط الدفع: / تي تي، ويسترن يونيون
القدرة على العرض: 1000pcs/m
منتوج وصف
Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale
Specifications:
STANDARD FUNCTION:
  • Peak hold function
  • Animal weighing function
  • Kg/lb switch function
  • Pre-set tare weight function
  • High-ok-low function
  • Weight accumulate , accumulate display ,accumulate clear fuction
  • ZERO trucking range , ZERO setting ( switch on / manually ) range , speed rate of zero Setting could be set separately .
  • Battery indication and alarm for low battery protection .
PARAMETRES:
Input signal range -19mV-19mV
Load cell excitation DC5V;
Max. connection number of load cell 4 at 350ohm
Load cell connection mode 6 wires
Verified counts 3000
Display 6 digits LED,6status indication
Display range -999999-999999
Power supply AC 220v : 50-60hz DC In-built rechargeable battery
Description:
  1. Weighing Indicator YH-T7E adopts fast speed ,
  2. High precision A/D conversion technology ,
  3. Widely applied in electronic platform scale,
  4. Electronic floor scale ,
  5. And so on alike static weighing system equipped with 1-4 loadcell .

Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale 0Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale 1

FEATURES:
  1. Low power consumption, provided with different kinds of power saving mode.
  2. Optional for RS232 communication with selectable baud rate and scoreboard interface Sending by 20mA current loop .
  3. Various kind of weighing mode , with easy operation
  4. AC/DC both available , could be recharged during power off .
Applications:

It is used in electronic platform scale, electronic floor scale and so on like static weighing system equipped with 1~4 350Ω load cell

Competitive Advantage:
  1. Professional manufacturer with 10 years
  2. OEM/ODM service acceptable
  3. 100% inspection
  4. Warranty: one year
